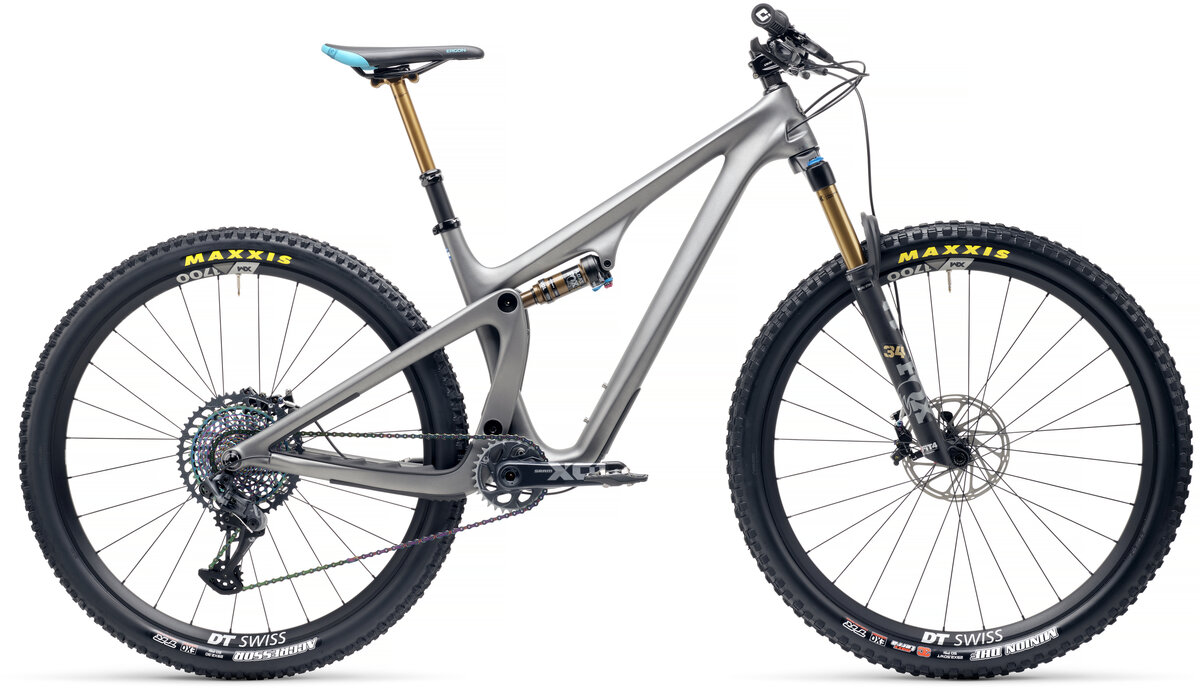

Yeti Cycles SB115 T3

Yeti Cycles SB115 T3
  • Color: Anthracite
  • Color: Glacier
  • Color: Turquoise
$10,000.00 - $11,500.00
Please select options Unavailable
Please call for more information. (909) 982-8849 info@royscyclery.com

Details

It's time to recalibrate your gray matter with what's happening in racing today. All it takes is "it's on!" ­– number plates not required. Born to naturally crush the climbs, the SB115 is evolved. Deft on the downs. Designed to race. Built to rally.

Geometry

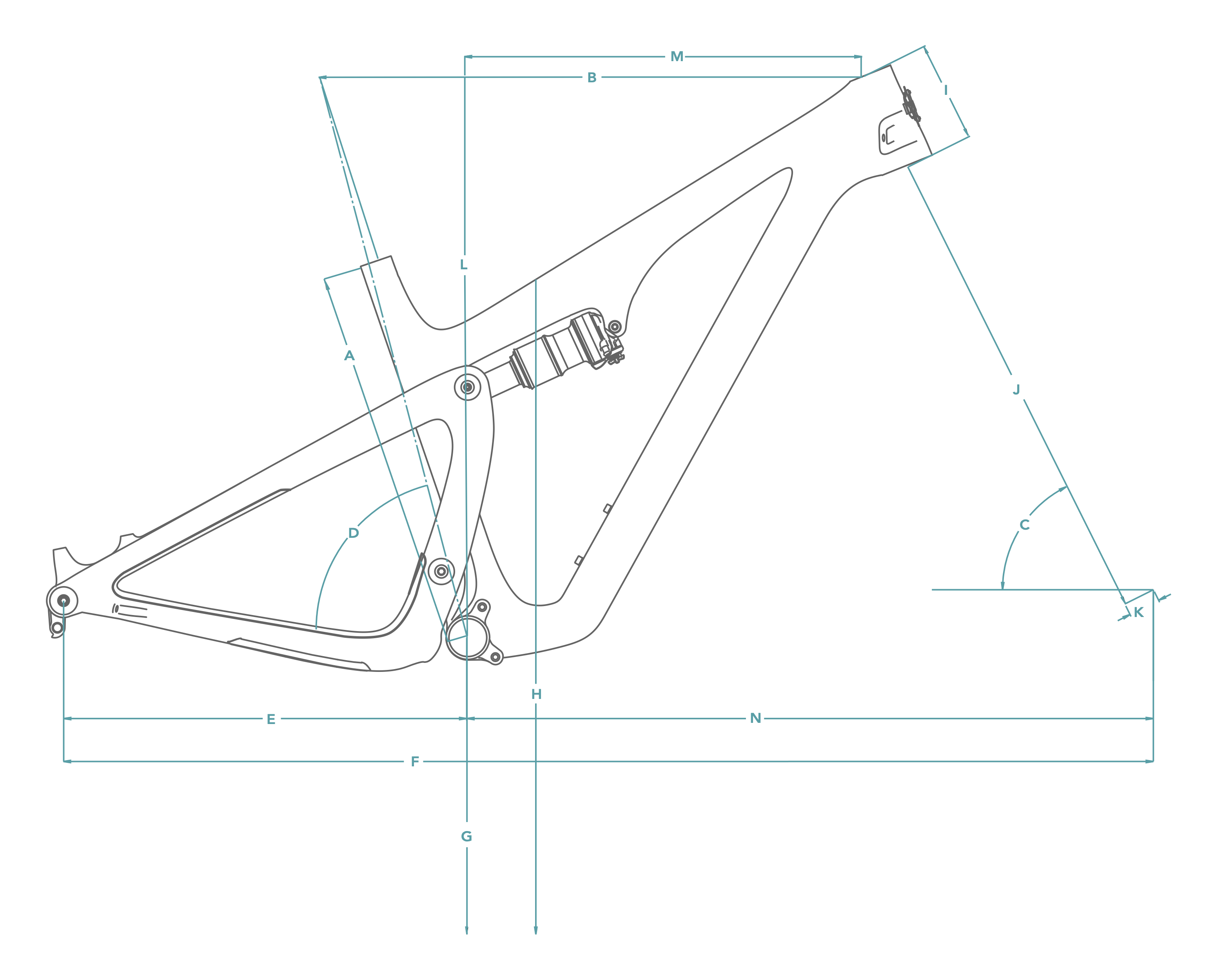

Geometry Chart:
SIZESMALLMEDIUMLARGEX-LARGE
A SEAT TUBE LENGTH (mm) 393 419 457 495
B EFF. TOPTUBE LENGTH (mm) 577.6 606.1 631.3 658.2
C HEADTUBE ANGLE 67.5 67.5 67.5 67.5
D EFF. SEAT TUBE ANGLE 74 74 74 74
E CHAINSTAY LENGTH (mm) 440.7 440.7 440.7 440.7
E WHEELBASE (mm) 1131 1160 1186 1214.1
F ESTIMATED BB HEIGHT (mm) 341.9 341.9 341.9 341.9
G STANDOVER (mm) 734.5 733.8 734 734.9
H HEADTUBE LENGTH (mm) 96.2 107 123.2 144.7
I AXLE TO CROWN (mm) 544 544 544 544
J OFFSET (mm) 44 44 44 44
K STACK (mm) 603.7 613.8 628.9 649
L REACH (mm) 404.5 429.6 449.6 469.5
M FRONT CENTER (mm) 690.3 719.3 745.4 773.4
N VERTICAL FORK TRAVEL (mm) 120.1 120.1 120.1 120.1
Sizes:
Small 155 cm - 170 cm
Medium 165 cm - 180 cm
Large 178 cm - 191 cm
X-Large 185 cm - 201 cm

Specs

Frame TURQ Series carbon fiber frame, Switch Infinity suspension technology, press-fit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, integrated derailleur hanger, and axle.
Fork FOX FACTORY 34 FIT4/130MM
Rear Shock FOX FACTORY FLOAT DPS
Wheels Select from dropdown above
Tires Front: MAXXIS MINION DHF 2.5 EXO
Rear: MAXXIS AGGRESSOR 2.3 EXO
Bottom Bracket SRAM DUB BB92
Crankset SRAM X01 EAGLE 30T 170MM
Shifters Select from dropdown above
Rear Derailleur Select from dropdown above
Cassette/Freewheel SRAM XX1 EAGLE 1299 10-52
Chain SRAM XX1 EAGLE
Brakes SRAM G2 ULTIMATE
Rotors SRAM CENTERLINE 180/SRAM CENTERLINE 180
Handlebars YETI CARBON 35X780MM
Tape/Grips ODI ELITE PRO
Stem RACE FACE TURBINE R 35X50MM
Headset CANE CREEK 110 INTEGRATED
Seatpost FOX TRANSFER FACTORY 30.9MM / SM: 125MM, MD: 150MM, LG/XL: 175MM
Saddle ERGON SADDLE

* Subject to change without notice.

Part Numbers

Option MPN
Anthracite / DT Swiss EXC 1501 + SRAM XX1 Eagle AXS / Small B22115TSMPANFAT0343B0
Anthracite / DT Swiss EXC 1501 + SRAM XX1 Eagle AXS / Medium B22115TMDPANFAT0343B0
Anthracite / DT Swiss EXC 1501 + SRAM XX1 Eagle AXS / Large B22115TLGPANFAT0343B0
Anthracite / DT Swiss EXC 1501 + SRAM XX1 Eagle AXS / X-Large B22115TXLPANFAT0343B0
Anthracite / DT Swiss XM 1700 + DT Swiss EXC 1501 / Small B22115TSMPANFAT0343W0
Anthracite / DT Swiss XM 1700 + DT Swiss EXC 1501 / Medium B22115TMDPANFAT0343W0
Anthracite / DT Swiss XM 1700 + DT Swiss EXC 1501 / Large B22115TLGPANFAT0343W0
Anthracite / DT Swiss XM 1700 + DT Swiss EXC 1501 / X-Large B22115TXLPANFAT0343W0
Anthracite / DT Swiss XM 1700 + SRAM XX1 Eagle / Small B22115TSMPANFAT034300
Anthracite / DT Swiss XM 1700 + SRAM XX1 Eagle / Medium B22115TMDPANFAT034300
Anthracite / DT Swiss XM 1700 + SRAM XX1 Eagle / Large B22115TLGPANFAT034300
Anthracite / DT Swiss XM 1700 + SRAM XX1 Eagle / X-Large B22115TXLPANFAT034300
Anthracite / DT Swiss XM 1700 + SRAM XX1 Eagle AXS / Small B22115TSMPANFAT0343E0
Anthracite / DT Swiss XM 1700 + SRAM XX1 Eagle AXS / Medium B22115TMDPANFAT0343E0
Anthracite / DT Swiss XM 1700 + SRAM XX1 Eagle AXS / Large B22115TLGPANFAT0343E0
Anthracite / DT Swiss XM 1700 + SRAM XX1 Eagle AXS / X-Large B22115TXLPANFAT0343E0
Glacier / DT Swiss EXC 1501 + SRAM XX1 Eagle AXS / Small B22115TSMPGLFAT0343B0
Glacier / DT Swiss EXC 1501 + SRAM XX1 Eagle AXS / Medium B22115TMDPGLFAT0343B0
Glacier / DT Swiss EXC 1501 + SRAM XX1 Eagle AXS / Large B22115TLGPGLFAT0343B0
Glacier / DT Swiss EXC 1501 + SRAM XX1 Eagle AXS / X-Large B22115TXLPGLFAT0343B0
Glacier / DT Swiss XM 1700 + DT Swiss EXC 1501 / Small B22115TSMPGLFAT0343W0
Glacier / DT Swiss XM 1700 + DT Swiss EXC 1501 / Medium B22115TMDPGLFAT0343W0
Glacier / DT Swiss XM 1700 + DT Swiss EXC 1501 / Large B22115TLGPGLFAT0343W0
Glacier / DT Swiss XM 1700 + DT Swiss EXC 1501 / X-Large B22115TXLPGLFAT0343W0
Glacier / DT Swiss XM 1700 + SRAM XX1 Eagle / Small B22115TSMPGLFAT034300
Glacier / DT Swiss XM 1700 + SRAM XX1 Eagle / Medium B22115TMDPGLFAT034300
Glacier / DT Swiss XM 1700 + SRAM XX1 Eagle / Large B22115TLGPGLFAT034300
Glacier / DT Swiss XM 1700 + SRAM XX1 Eagle / X-Large B22115TXLPGLFAT034300
Glacier / DT Swiss XM 1700 + SRAM XX1 Eagle AXS / Small B22115TSMPGLFAT0343E0
Glacier / DT Swiss XM 1700 + SRAM XX1 Eagle AXS / Medium B22115TMDPGLFAT0343E0
Glacier / DT Swiss XM 1700 + SRAM XX1 Eagle AXS / Large B22115TLGPGLFAT0343E0
Glacier / DT Swiss XM 1700 + SRAM XX1 Eagle AXS / X-Large B22115TXLPGLFAT0343E0
Turquoise / DT Swiss EXC 1501 + SRAM XX1 Eagle AXS / Small B22115TSMPTUFAT0343B0
Turquoise / DT Swiss EXC 1501 + SRAM XX1 Eagle AXS / Medium B22115TMDPTUFAT0343B0
Turquoise / DT Swiss EXC 1501 + SRAM XX1 Eagle AXS / Large B22115TLGPTUFAT0343B0
Turquoise / DT Swiss EXC 1501 + SRAM XX1 Eagle AXS / X-Large B22115TXLPTUFAT0343B0
Turquoise / DT Swiss XM 1700 + DT Swiss EXC 1501 / Small B22115TSMPTUFAT0343W0
Turquoise / DT Swiss XM 1700 + DT Swiss EXC 1501 / Medium B22115TMDPTUFAT0343W0
Turquoise / DT Swiss XM 1700 + DT Swiss EXC 1501 / Large B22115TLGPTUFAT0343W0
Turquoise / DT Swiss XM 1700 + DT Swiss EXC 1501 / X-Large B22115TXLPTUFAT0343W0
Turquoise / DT Swiss XM 1700 + SRAM XX1 Eagle / Small B22115TSMPTUFAT034300
Turquoise / DT Swiss XM 1700 + SRAM XX1 Eagle / Medium B22115TMDPTUFAT034300
Turquoise / DT Swiss XM 1700 + SRAM XX1 Eagle / Large B22115TLGPTUFAT034300
Turquoise / DT Swiss XM 1700 + SRAM XX1 Eagle / X-Large B22115TXLPTUFAT034300
Turquoise / DT Swiss XM 1700 + SRAM XX1 Eagle AXS / Small B22115TSMPTUFAT0343E0
Turquoise / DT Swiss XM 1700 + SRAM XX1 Eagle AXS / Medium B22115TMDPTUFAT0343E0
Turquoise / DT Swiss XM 1700 + SRAM XX1 Eagle AXS / Large B22115TLGPTUFAT0343E0
Turquoise / DT Swiss XM 1700 + SRAM XX1 Eagle AXS / X-Large B22115TXLPTUFAT0343E0
