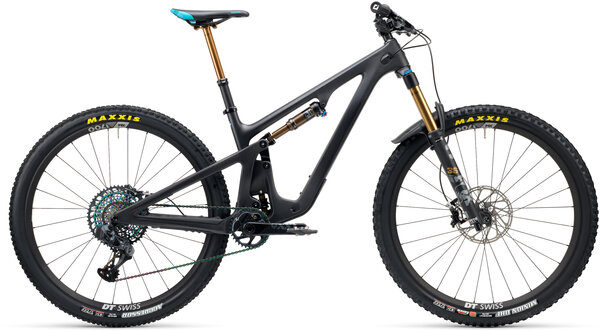

Yeti Cycles SB140 29 T4

Yeti Cycles SB140 29 T4
  • Color: Raw Carbon
  • Color: Sage
  • Color: Sangria
  • Color: Turquoise
$11,500.00
Please select options
Please call for more information. (909) 982-8849 info@royscyclery.com

Details

Meet the bike in between nothing. Leaving no rider wanting. Master of the climb, the bomb, the rail and the air. The utterly unequivocal. The rule crusher. The trend buster. No rig can rule all, but this one can absolutely rule. The mountain bike.

Geometry Chart:
SizeSmallMediumLargeX-LargeXX-Large
Wheel Size (IN)29 29292929
Reach (mm)435 465485510525
Top Tube Length [Effective] (mm)571 602623650670
Stack (mm)614 617621631651
Head Tube Length (mm)92 95100112134
Seat Tube Length (mm)365 400440470485
Seat Tube Angle [Effective]77.5° 77.5°77.5°77.4°77.4°
Seat Tube Angle [Actual]72.2° 72.6°72.8°73.2°73.7°
Head Tube Angle65.4° 65.4°65.4°65.4°65.4°
BB Height [Estimated] (mm)339 339339339339
Front Center (mm)748 779802831856
Chainstay Length (mm)436 438440442444
Wheelbase (mm)1184 1217124212731300
Standover (mm)722 729733735740
Fork [Axle-To-Crown] (mm)565 565565565565
Fork Travel (mm)150 150150150150
Vertical Fork Travel (mm)136 136136136136
Fork Offset (mm)44 44444444

Specs

Frame TURQ series carbon
Fork FOX FACTORY 36 FIT 4/150MM
Rear Shock FOX FACTORY FLOAT DPS
Wheels DT SWISS XM1700 30MM
Tires MAXXIS MINION DHF 2.5 EXO / MAXXIS AGGRESSOR 2.3 EXO
Bottom Bracket SRAM DUB BSA 73
Crankset SRAM XX1 EAGLE 32T 170MM
Shifters SRAM EAGLE AXS
Rear Derailleur SRAM XX1 EAGLE AXS
Cassette/Freewheel SRAM XX1 EAGLE 1299 10-52
Chain SRAM XX1 EAGLE
Brakes SRAM G2 ULTIMATE
Rotors SRAM CENTERLINE 200/SRAM CENTERLINE 180
Handlebars YETI CARBON 35X780MM
Tape/Grips ODI ELITE PRO
Stem BURGTEC ENDURO MK3 CNC 35X50MM
Headset CANE CREEK 110 INTEGRATED
Seatpost FOX TRANSFER FACTORY 31.6MM / SM: 150MM, MD: 175MM, LG-XXL: 200MM
Saddle ERGON SM ENDURO SADDLE
Pedals Sold separately

* Subject to change without notice.

Part Numbers

Option MPN
Raw Carbon / Small B23149TSMRGDFATA46500
Raw Carbon / Medium B23149TMDRGDFATA46500
Raw Carbon / Large B23149TLGRGDFATA46500
Raw Carbon / X-Large B23149TXLRGDFATA46500
Raw Carbon / XX-Large B23149TXXRGDFATA46500
Sage / Small B23149TSMPSGFATA46500
Sage / Medium B23149TMDPSGFATA46500
Sage / Large B23149TLGPSGFATA46500
Sage / X-Large B23149TXLPSGFATA46500
Sage / XX-Large B23149TXXPSGFATA46500
Sangria / Small B23149TSMPSAFATA46500
Sangria / Medium B23149TMDPSAFATA46500
Sangria / Large B23149TLGPSAFATA46500
Sangria / X-Large B23149TXLPSAFATA46500
Sangria / XX-Large B23149TXXPSAFATA46500
Turquoise / Small B23149TSMPTUFATA46500
Turquoise / Medium B23149TMDPTUFATA46500
Turquoise / Large B23149TLGPTUFATA46500
Turquoise / X-Large B23149TXLPTUFATA46500
Turquoise / XX-Large B23149TXXPTUFATA46500
