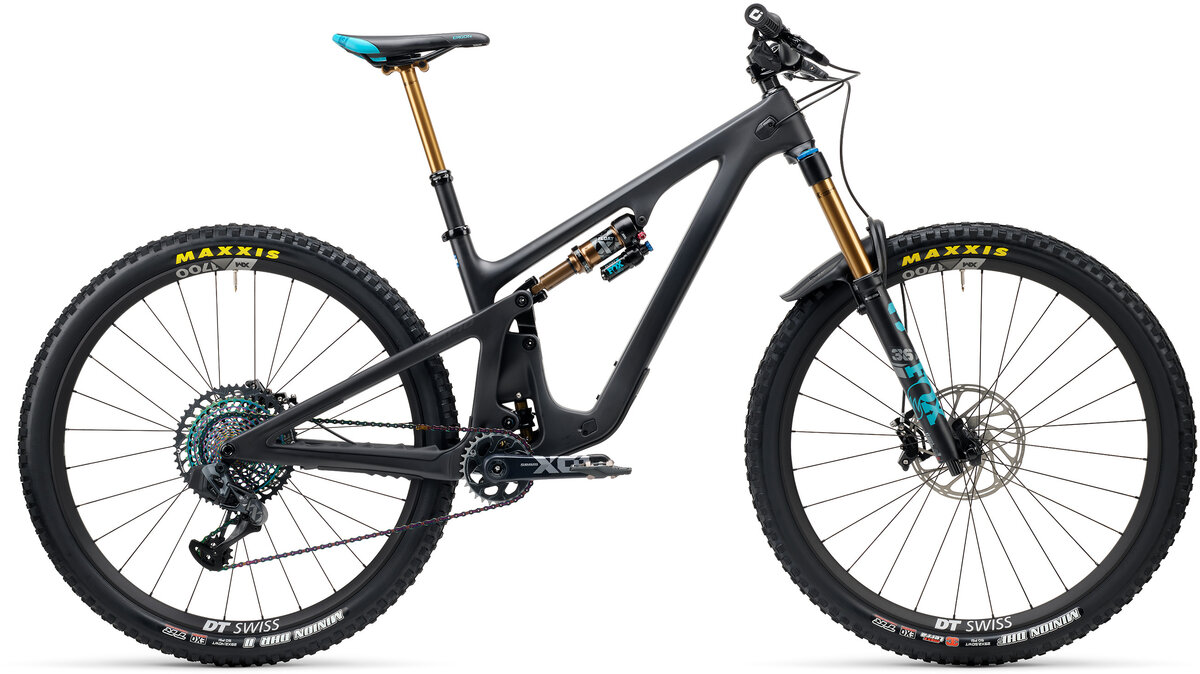

Yeti Cycles SB140 LRT4
$11,700.00
Details
Meet the bike in between nothing. Leaving no rider wanting. Master of the climb, the bomb, the rail and the air. The utterly unequivocal. The rule crusher. The trend buster. No rig can rule all, but this one can absolutely rule. The mountain bike.
| Size | Small | Medium | Large | X-Large | XX-Large |
|---|---|---|---|---|---|
| Wheel Size (IN) | 29 | 29 | 29 | 29 | 29 |
| Reach (mm) | 430 | 460 | 480 | 505 | 520 |
| Top Tube Length [Effective] (mm) | 573 | 603 | 624 | 652 | 671 |
| Stack (mm) | 617 | 620 | 625 | 635 | 655 |
| Head Tube Length (mm) | 92 | 95 | 100 | 112 | 134 |
| Seat Tube Length (mm) | 365 | 400 | 440 | 470 | 485 |
| Seat Tube Angle [Effective] (mm) | 77° | 77° | 77° | 77° | 77° |
| Seat Tube Angle [Actual] (mm) | 71.8° | 72.2° | 72.4° | 72.8° | 73.3° |
| Head Tube Angle (mm) | 65° | 65° | 65° | 65° | 65° |
| BB Height [Estimated] (mm) | 342 | 342 | 342 | 342 | 342 |
| Front Center (mm) | 752 | 783 | 806 | 835 | 860 |
| Chainstay Length (mm) | 436 | 438 | 440 | 442 | 444 |
| Wheelbase (mm) | 1188 | 1221 | 1246 | 1277 | 1304 |
| Standover (mm) | 726 | 733 | 737 | 739 | 744 |
| Fork [Axle-To-Crown] (mm) | 575 | 575 | 575 | 575 | 575 |
| Fork Travel (mm) | 160 | 160 | 160 | 160 | 160 |
| Vertical Fork Travel (mm) | 145 | 145 | 145 | 145 | 145 |
| Fork Offset (mm) | 44 | 44 | 44 | 44 | 44 |
Specs
| Frame | TURQ series carbon |
|---|---|
| Fork | FOX FACTORY 36 GRIP 2/160MM |
| Rear Shock | FOX FACTORY FLOAT X |
| Wheels | DT SWISS XM1700 30MM |
| Tires | MAXXIS MINION DHF 2.5 EXO / MAXXIS MINION DHR II 2.4 EXO |
| Bottom Bracket | SRAM DUB BSA 73 |
| Crankset | SRAM X01 EAGLE 30T 170MM |
| Shifters | SRAM EAGLE AXS |
| Rear Derailleur | SRAM XX1 EAGLE AXS |
| Cassette/Freewheel | SRAM XX1 EAGLE 1299 10-52 |
| Chain | SRAM XX1 EAGLE |
| Brakes | SRAM CODE RSC |
| Rotors | SRAM CENTERLINE 200/SRAM CENTERLINE 180 |
| Handlebars | YETI CARBON 35X780MM |
| Tape/Grips | ODI ELITE PRO |
| Stem | BURGTEC ENDURO MK3 CNC 35X50MM |
| Headset | CANE CREEK 110 INTEGRATED |
| Seatpost | FOX TRANSFER FACTORY 31.6MM / SM: 150MM, MD: 175MM, LG-XXL: 200MM |
| Saddle | ERGON SM ENDURO SADDLE |
| Pedals | Sold separately |
* Subject to change without notice.
Part Numbers
| Option | MPN |
|---|---|
| Raw Carbon / Small | B23149TSMRGDFXTA86600 |
| Raw Carbon / Medium | B23149TMDRGDFXTA86600 |
| Raw Carbon / Large | B23149TLGRGDFXTA86600 |
| Raw Carbon / X-Large | B23149TXLRGDFXTA86600 |
| Raw Carbon / XX-Large | B23149TXXRGDFXTA86600 |
| Sage / Small | B23149TSMPSGFXTA86600 |
| Sage / Medium | B23149TMDPSGFXTA86600 |
| Sage / Large | B23149TLGPSGFXTA86600 |
| Sage / X-Large | B23149TXLPSGFXTA86600 |
| Sage / XX-Large | B23149TXXPSGFXTA86600 |
| Sangria / Small | B23149TSMPSAFXTA86600 |
| Sangria / Medium | B23149TMDPSAFXTA86600 |
| Sangria / Large | B23149TLGPSAFXTA86600 |
| Sangria / X-Large | B23149TXLPSAFXTA86600 |
| Sangria / XX-Large | B23149TXXPSAFXTA86600 |
| Turquoise / Small | B23149TSMPTUFXTA86600 |
| Turquoise / Medium | B23149TMDPTUFXTA86600 |
| Turquoise / Large | B23149TLGPTUFXTA86600 |
| Turquoise / X-Large | B23149TXLPTUFXTA86600 |
| Turquoise / XX-Large | B23149TXXPTUFXTA86600 |
