Yeti Cycles SB165 T2 FLOAT X2

Yeti Cycles SB165 T2 FLOAT X2
  • Color: Moss
  • Color: Raw Carbon
  • Color: Turquoise
$9,900.00 - $11,600.00
Please select options
Please call for more information. (909) 982-8849 info@royscyclery.com

Details

Master of the gnarniverse. Bold claim for some. Fact-checked humility for the SB165. At home outside the tape, beyond the norm. Taken on the trails nobody talks about. Trusted on the lines where mistakes can't happen. Comfortable with all the chaos. Pleased when you're puckered. Fearless of your fear.

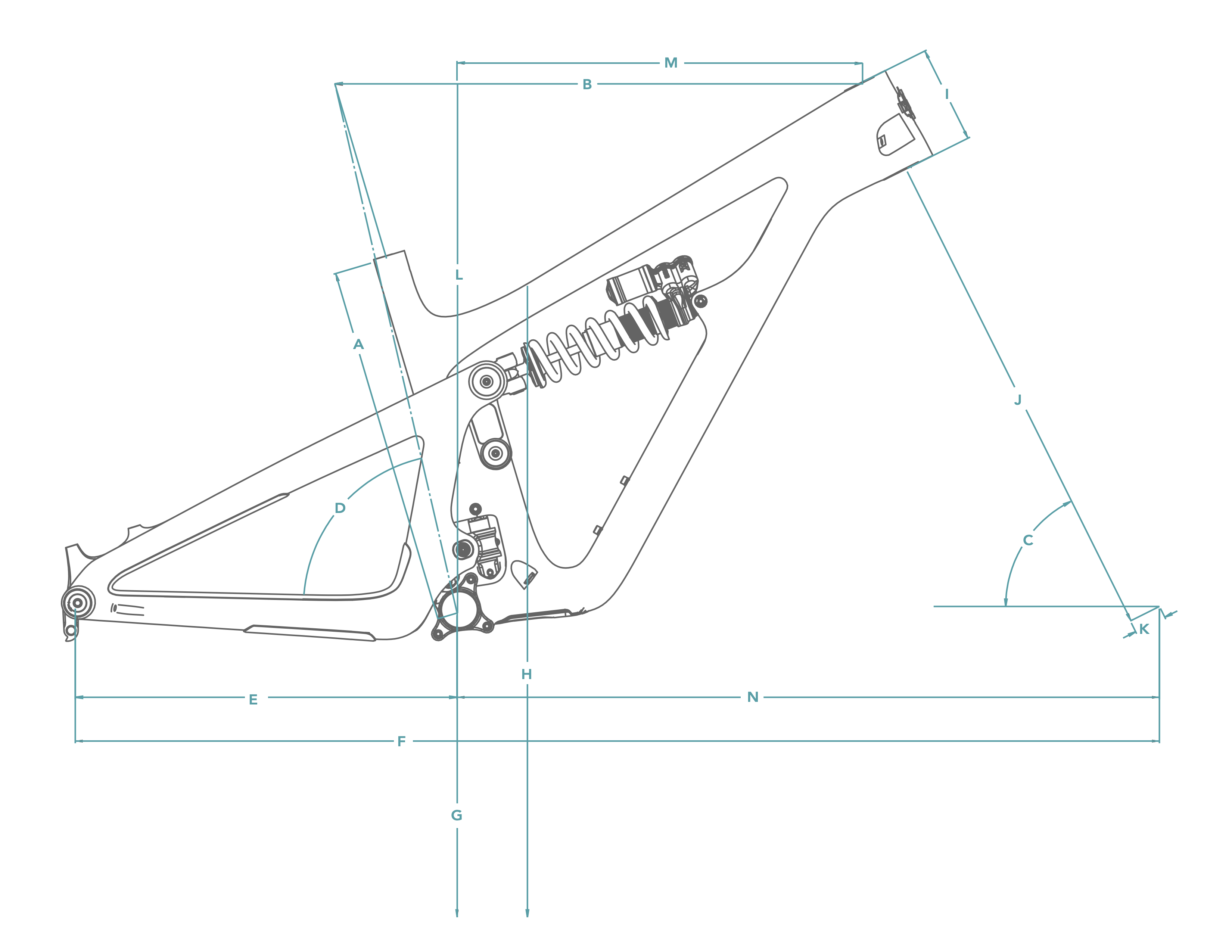

Geometry Chart:
SIZESMALLMEDIUMLARGEX-LARGE
A SEAT TUBE LENGTH (mm) 380 410 450 495
B TOPTUBE LENGTH (mm) 567 598.5 621.5 649.4
C HEADTUBE ANGLE 63.5 63.5 63.5 63.5
D EFF. SEAT TUBE ANGLE 77 77 77 77
E CHAINSTAY LENGTH (mm) 433 433 433 433
F WHEELBASE (mm) 1197.7 1230.2 1255.2 1285.2
G ESTIMATED BB HEIGHT (mm) 344.9 344.9 344.9 344.9
H STANDOVER (mm) 710.4 716.3 723.4 746.7
I HEADTUBE LENGTH (mm) 104.8 110.4 121.6 132.8
J AXLE TO CROWN (mm) 569.1 569.1 569.1 569.1
K OFFSET (mm) 37.5 37.5 37.5 37.5
L STACK (mm) 594.9 599.9 609.9 619.9
M REACH (mm) 430.1 460.1 480.1 505.1
N FRONT CENTER (mm) 764.7 797.2 822.2 852.2
Sizes:
Small 155 cm - 170 cm
Medium 165 cm - 180 cm
Large 178 cm - 191 cm
X-Large 185 cm - 201 cm

Specs

Frame TURQ Series carbon fiber frame, Switch Infinity suspension technology, press-fit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, integrated derailleur hanger, and axle.
Fork FOX FACTORY 38 GRIP 2/180MM
Rear Shock FOX FACTORY FLOAT X2
Wheels Select from dropdown above
Tires Front: MAXXIS ASSEGAI 2.5 EXO+
Rear: MAXXIS MINION DHR II 2.4 EXO+
Bottom Bracket SRAM DUB BB92
Crankset SRAM X1 EAGLE 30T 170MM
Shifters Select from dropdown above
Rear Derailleur Select from dropdown above
Cassette/Freewheel SRAM X01 EAGLE 1295 10-52
Chain SRAM GX EAGLE
Brakes SRAM CODE RSC
Rotors SRAM CENTERLINE 200/SRAM CENTERLINE 200
Handlebars YETI CARBON 35X800MM
Tape/Grips ODI ELITE PRO
Stem RACE FACE AEFFECT R 35X50
Headset CANE CREEK 40 INTEGRATED
Seatpost FOX TRANSFER 31.6MM / SM: 125MM, MD: 150MM, LG/XL: 175MM
Saddle SILVERADO CUSTOM

* Subject to change without notice.

Part Numbers

Option MPN
Moss / DT Swiss Custom EX 1700 + SRAM X01 Eagle / Small B22165TSMPMOX2T028800
Moss / DT Swiss Custom EX 1700 + SRAM X01 Eagle / Medium B22165TMDPMOX2T028800
Moss / DT Swiss Custom EX 1700 + SRAM X01 Eagle / Large B22165TLGPMOX2T028800
Moss / DT Swiss Custom EX 1700 + SRAM X01 Eagle / X-Large B22165TXLPMOX2T028800
Moss / DT Swiss Custom EX 1700 + SRAM XX1 Eagle AXS / Small B22165TSMPMOX2T0288E0
Moss / DT Swiss Custom EX 1700 + SRAM XX1 Eagle AXS / Medium B22165TMDPMOX2T0288E0
Moss / DT Swiss Custom EX 1700 + SRAM XX1 Eagle AXS / Large B22165TLGPMOX2T0288E0
Moss / DT Swiss Custom EX 1700 + SRAM XX1 Eagle AXS / X-Large B22165TXLPMOX2T0288E0
Moss / DT Swiss EXC 1501 + SRAM X01 Eagle / Small B22165TSMPMOX2T0288W0
Moss / DT Swiss EXC 1501 + SRAM X01 Eagle / Medium B22165TMDPMOX2T0288W0
Moss / DT Swiss EXC 1501 + SRAM X01 Eagle / Large B22165TLGPMOX2T0288W0
Moss / DT Swiss EXC 1501 + SRAM X01 Eagle / X-Large B22165TXLPMOX2T0288W0
Moss / DT Swiss EXC 1501 + SRAM XX1 Eagle AXS / Small B22165TSMPMOX2T0288B0
Moss / DT Swiss EXC 1501 + SRAM XX1 Eagle AXS / Medium B22165TMDPMOX2T0288B0
Moss / DT Swiss EXC 1501 + SRAM XX1 Eagle AXS / Large B22165TLGPMOX2T0288B0
Moss / DT Swiss EXC 1501 + SRAM XX1 Eagle AXS / X-Large B22165TXLPMOX2T0288B0
Raw Carbon / DT Swiss Custom EX 1700 + SRAM X01 Eagle / Small B22165TSMRGDX2T028800
Raw Carbon / DT Swiss Custom EX 1700 + SRAM X01 Eagle / Medium B22165TMDRGDX2T028800
Raw Carbon / DT Swiss Custom EX 1700 + SRAM X01 Eagle / Large B22165TLGRGDX2T028800
Raw Carbon / DT Swiss Custom EX 1700 + SRAM X01 Eagle / X-Large B22165TXLRGDX2T028800
Raw Carbon / DT Swiss Custom EX 1700 + SRAM XX1 Eagle AXS / Small B22165TSMRGDX2T0288E0
Raw Carbon / DT Swiss Custom EX 1700 + SRAM XX1 Eagle AXS / Medium B22165TMDRGDX2T0288E0
Raw Carbon / DT Swiss Custom EX 1700 + SRAM XX1 Eagle AXS / Large B22165TLGRGDX2T0288E0
Raw Carbon / DT Swiss Custom EX 1700 + SRAM XX1 Eagle AXS / X-Large B22165TXLRGDX2T0288E0
Raw Carbon / DT Swiss EXC 1501 + SRAM X01 Eagle / Small B22165TSMRGDX2T0288W0
Raw Carbon / DT Swiss EXC 1501 + SRAM X01 Eagle / Medium B22165TMDRGDX2T0288W0
Raw Carbon / DT Swiss EXC 1501 + SRAM X01 Eagle / Large B22165TLGRGDX2T0288W0
Raw Carbon / DT Swiss EXC 1501 + SRAM X01 Eagle / X-Large B22165TXLRGDX2T0288W0
Raw Carbon / DT Swiss EXC 1501 + SRAM XX1 Eagle AXS / Small B22165TSMRGDX2T0288B0
Raw Carbon / DT Swiss EXC 1501 + SRAM XX1 Eagle AXS / Medium B22165TMDRGDX2T0288B0
Raw Carbon / DT Swiss EXC 1501 + SRAM XX1 Eagle AXS / Large B22165TLGRGDX2T0288B0
Raw Carbon / DT Swiss EXC 1501 + SRAM XX1 Eagle AXS / X-Large B22165TXLRGDX2T0288B0
Turquoise / DT Swiss Custom EX 1700 + SRAM X01 Eagle / Small B22165TSMPTUX2T028800
Turquoise / DT Swiss Custom EX 1700 + SRAM X01 Eagle / Medium B22165TMDPTUX2T028800
Turquoise / DT Swiss Custom EX 1700 + SRAM X01 Eagle / Large B22165TLGPTUX2T028800
Turquoise / DT Swiss Custom EX 1700 + SRAM X01 Eagle / X-Large B22165TXLPTUX2T028800
Turquoise / DT Swiss Custom EX 1700 + SRAM XX1 Eagle AXS / Small B22165TSMPTUX2T0288E0
Turquoise / DT Swiss Custom EX 1700 + SRAM XX1 Eagle AXS / Medium B22165TMDPTUX2T0288E0
Turquoise / DT Swiss Custom EX 1700 + SRAM XX1 Eagle AXS / Large B22165TLGPTUX2T0288E0
Turquoise / DT Swiss Custom EX 1700 + SRAM XX1 Eagle AXS / X-Large B22165TXLPTUX2T0288E0
Turquoise / DT Swiss EXC 1501 + SRAM X01 Eagle / Small B22165TSMPTUX2T0288W0
Turquoise / DT Swiss EXC 1501 + SRAM X01 Eagle / Medium B22165TMDPTUX2T0288W0
Turquoise / DT Swiss EXC 1501 + SRAM X01 Eagle / Large B22165TLGPTUX2T0288W0
Turquoise / DT Swiss EXC 1501 + SRAM X01 Eagle / X-Large B22165TXLPTUX2T0288W0
Turquoise / DT Swiss EXC 1501 + SRAM XX1 Eagle AXS / Small B22165TSMPTUX2T0288B0
Turquoise / DT Swiss EXC 1501 + SRAM XX1 Eagle AXS / Medium B22165TMDPTUX2T0288B0
Turquoise / DT Swiss EXC 1501 + SRAM XX1 Eagle AXS / Large B22165TLGPTUX2T0288B0
Turquoise / DT Swiss EXC 1501 + SRAM XX1 Eagle AXS / X-Large B22165TXLPTUX2T0288B0
