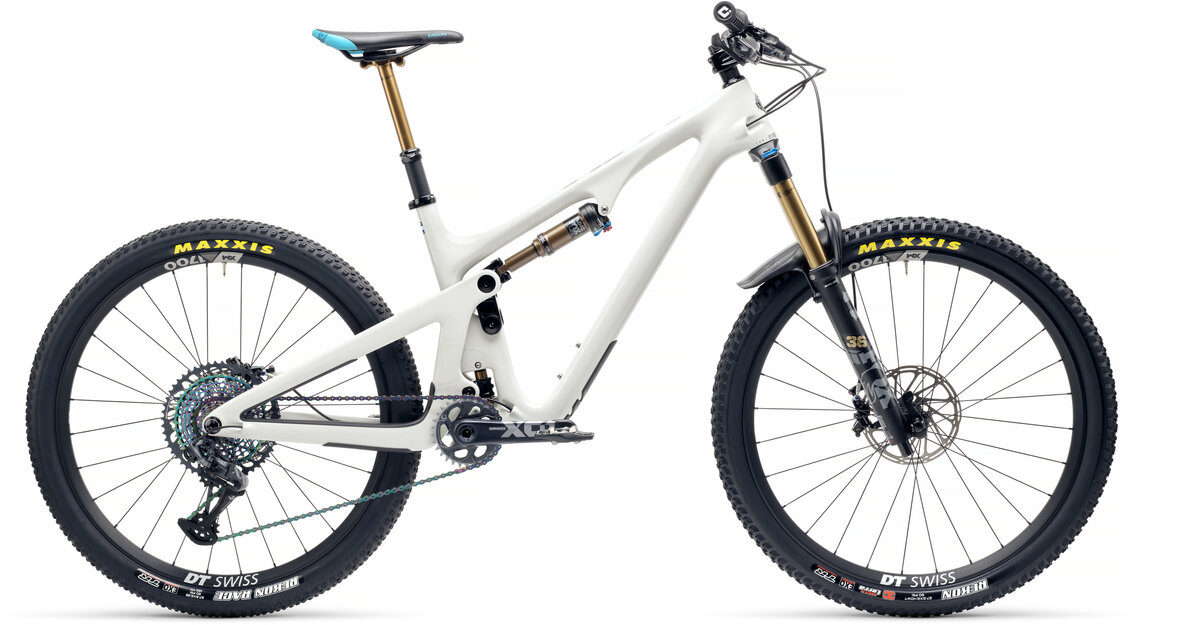

Yeti Cycles SB140 T3

Yeti Cycles SB140 T3
  • Color: Blanco
  • Color: Smoke
  • Color: Turquoise
$10,200.00 - $11,700.00
Please select options Unavailable
Please call for more information. (909) 982-8849 info@royscyclery.com

Details

Some say the SB140 never met a dirt it didn't like. We agree in spades. What's your pleasure? Drag a bar. Make an edit. Stay out after dark. Try it. Land it. Or just stay at it. Happy to pedal. Greedy for more. The mayor of jibtown, proudly wearing the rip crown. The SB140. Down to fun.

Geometry Chart:
SIZEX-SMALLSMALLMEDIUMLARGEX-LARGE
A SEAT TUBE LENGTH (mm) 355 380 410 450 495
B TOPTUBE LENGTH (mm) 536.9 565.8 597.2 620.1 648.1
C HEADTUBE ANGLE 65.5 65.4 65.4 65.4 65.4
D EFF. SEAT TUBE ANGLE 77.6 77.5 77.5 77.4 77.3
E CHAINSTAY LENGTH (mm) 432.9 432.9 432.9 432.9 432.9
F WHEELBASE (mm) 1140.2 1171.3 1203.6 1228.3 1257.9
G ESTIMATED BB HEIGHT (mm) 336.6 336.6 336.7 336.8 336.9
H STANDOVER (mm) 698.4 703.8 706.2 708.6 711
I HEADTUBE LENGTH (mm) 95.5 109.9 115.4 126.4 137.5
J AXLE TO CROWN (mm) 539.1 539.1 539.1 539.1 539.1
K OFFSET (mm) 37 37 37 37 37
L STACK (mm) 578.8 591.7 596.5 606.4 616.3
M REACH (mm) 409.6 434.6 464.5 484.5 509.5
N FRONT CENTER (mm) 707.3 738.4 770.7 795.4 825
Sizes:
X-Small 149 cm - 160 cm
Small 155 cm - 170 cm
Medium 165 cm - 180 cm
Large 178 cm - 191 cm
X-Large 185 cm - 201 cm

Specs

Frame TURQ Series carbon fiber frame, Switch Infinity suspension technology, press-fit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, integrated derailleur hanger, and axle.
Fork FOX FACTORY 36 FIT 4/150MM
Rear Shock FOX FACTORY FLOAT DPS
Wheels Select from dropdown above
Tires Front: MAXXIS MINION DHF 2.6 EXO
Rear: MAXXIS REKON 2.6 EXO
Bottom Bracket SRAM DUB BB92
Crankset SRAM X01 EAGLE 30T 170MM
Shifters Select from dropdown above
Rear Derailleur Select from dropdown above
Cassette/Freewheel SRAM XX1 EAGLE 1299 10-52
Chain SRAM XX1 EAGLE
Brakes SRAM G2 ULTIMATE
Rotors SRAM CENTERLINE 180/SRAM CENTERLINE 180
Handlebars YETI CARBON 35X760MM
Tape/Grips ODI ELITE PRO
Stem RACE FACE TURBINE R 35X50MM
Headset CANE CREEK 110 INTEGRATED
Seatpost FOX TRANSFER FACTORY 31.6MM / SM: 125MM, MD: 150MM, LG/XL: 175MM
Saddle ERGON SADDLE

* Subject to change without notice.

Part Numbers

Option MPN
Blanco / DT Swiss EXC 1501 + SRAM XX1 Eagle / X-Small B22140TXSPBLFAT0365W0
Blanco / DT Swiss EXC 1501 + SRAM XX1 Eagle / Small B22140TSMPBLFAT0365W0
Blanco / DT Swiss EXC 1501 + SRAM XX1 Eagle / Medium B22140TMDPBLFAT0365W0
Blanco / DT Swiss EXC 1501 + SRAM XX1 Eagle / Large B22140TLGPBLFAT0365W0
Blanco / DT Swiss EXC 1501 + SRAM XX1 Eagle / X-Large B22140TXLPBLFAT0365W0
Blanco / DT Swiss EXC 1501 + SRAM XX1 Eagle AXS / X-Small B22140TXSPBLFAT0365B0
Blanco / DT Swiss EXC 1501 + SRAM XX1 Eagle AXS / Small B22140TSMPBLFAT0365B0
Blanco / DT Swiss EXC 1501 + SRAM XX1 Eagle AXS / Medium B22140TMDPBLFAT0365B0
Blanco / DT Swiss EXC 1501 + SRAM XX1 Eagle AXS / Large B22140TLGPBLFAT0365B0
Blanco / DT Swiss EXC 1501 + SRAM XX1 Eagle AXS / X-Large B22140TXLPBLFAT0365B0
Blanco / DT Swiss XM 1700 + SRAM XX1 Eagle / X-Small B22140TXSPBLFAT036500
Blanco / DT Swiss XM 1700 + SRAM XX1 Eagle / Small B22140TSMPBLFAT036500
Blanco / DT Swiss XM 1700 + SRAM XX1 Eagle / Medium B22140TMDPBLFAT036500
Blanco / DT Swiss XM 1700 + SRAM XX1 Eagle / Large B22140TLGPBLFAT036500
Blanco / DT Swiss XM 1700 + SRAM XX1 Eagle / X-Large B22140TXLPBLFAT036500
Blanco / DT Swiss XM 1700 + SRAM XX1 Eagle AXS / X-Small B22140TXSPBLFAT0365E0
Blanco / DT Swiss XM 1700 + SRAM XX1 Eagle AXS / Small B22140TSMPBLFAT0365E0
Blanco / DT Swiss XM 1700 + SRAM XX1 Eagle AXS / Medium B22140TMDPBLFAT0365E0
Blanco / DT Swiss XM 1700 + SRAM XX1 Eagle AXS / Large B22140TLGPBLFAT0365E0
Blanco / DT Swiss XM 1700 + SRAM XX1 Eagle AXS / X-Large B22140TXLPBLFAT0365E0
Smoke / DT Swiss EXC 1501 + SRAM XX1 Eagle / X-Small B22140TXSPGEFAT0365W0
Smoke / DT Swiss EXC 1501 + SRAM XX1 Eagle / Small B22140TSMPGEFAT0365W0
Smoke / DT Swiss EXC 1501 + SRAM XX1 Eagle / Medium B22140TMDPGEFAT0365W0
Smoke / DT Swiss EXC 1501 + SRAM XX1 Eagle / Large B22140TLGPGEFAT0365W0
Smoke / DT Swiss EXC 1501 + SRAM XX1 Eagle / X-Large B22140TXLPGEFAT0365W0
Smoke / DT Swiss EXC 1501 + SRAM XX1 Eagle AXS / X-Small B22140TXSPGEFAT0365B0
Smoke / DT Swiss EXC 1501 + SRAM XX1 Eagle AXS / Small B22140TSMPGEFAT0365B0
Smoke / DT Swiss EXC 1501 + SRAM XX1 Eagle AXS / Medium B22140TMDPGEFAT0365B0
Smoke / DT Swiss EXC 1501 + SRAM XX1 Eagle AXS / Large B22140TLGPGEFAT0365B0
Smoke / DT Swiss EXC 1501 + SRAM XX1 Eagle AXS / X-Large B22140TXLPGEFAT0365B0
Smoke / DT Swiss XM 1700 + SRAM XX1 Eagle / X-Small B22140TXSPGEFAT036500
Smoke / DT Swiss XM 1700 + SRAM XX1 Eagle / Small B22140TSMPGEFAT036500
Smoke / DT Swiss XM 1700 + SRAM XX1 Eagle / Medium B22140TMDPGEFAT036500
Smoke / DT Swiss XM 1700 + SRAM XX1 Eagle / Large B22140TLGPGEFAT036500
Smoke / DT Swiss XM 1700 + SRAM XX1 Eagle / X-Large B22140TXLPGEFAT036500
Smoke / DT Swiss XM 1700 + SRAM XX1 Eagle AXS / X-Small B22140TXSPGEFAT0365E0
Smoke / DT Swiss XM 1700 + SRAM XX1 Eagle AXS / Small B22140TSMPGEFAT0365E0
Smoke / DT Swiss XM 1700 + SRAM XX1 Eagle AXS / Medium B22140TMDPGEFAT0365E0
Smoke / DT Swiss XM 1700 + SRAM XX1 Eagle AXS / Large B22140TLGPGEFAT0365E0
Smoke / DT Swiss XM 1700 + SRAM XX1 Eagle AXS / X-Large B22140TXLPGEFAT0365E0
Turquoise / DT Swiss EXC 1501 + SRAM XX1 Eagle / X-Small B22140TXSPTUFAT0365W0
Turquoise / DT Swiss EXC 1501 + SRAM XX1 Eagle / Small B22140TSMPTUFAT0365W0
Turquoise / DT Swiss EXC 1501 + SRAM XX1 Eagle / Medium B22140TMDPTUFAT0365W0
Turquoise / DT Swiss EXC 1501 + SRAM XX1 Eagle / Large B22140TLGPTUFAT0365W0
Turquoise / DT Swiss EXC 1501 + SRAM XX1 Eagle / X-Large B22140TXLPTUFAT0365W0
Turquoise / DT Swiss EXC 1501 + SRAM XX1 Eagle AXS / X-Small B22140TXSPTUFAT0365B0
Turquoise / DT Swiss EXC 1501 + SRAM XX1 Eagle AXS / Small B22140TSMPTUFAT0365B0
Turquoise / DT Swiss EXC 1501 + SRAM XX1 Eagle AXS / Medium B22140TMDPTUFAT0365B0
Turquoise / DT Swiss EXC 1501 + SRAM XX1 Eagle AXS / Large B22140TLGPTUFAT0365B0
Turquoise / DT Swiss EXC 1501 + SRAM XX1 Eagle AXS / X-Large B22140TXLPTUFAT0365B0
Turquoise / DT Swiss XM 1700 + SRAM XX1 Eagle / X-Small B22140TXSPTUFAT036500
Turquoise / DT Swiss XM 1700 + SRAM XX1 Eagle / Small B22140TSMPTUFAT036500
Turquoise / DT Swiss XM 1700 + SRAM XX1 Eagle / Medium B22140TMDPTUFAT036500
Turquoise / DT Swiss XM 1700 + SRAM XX1 Eagle / Large B22140TLGPTUFAT036500
Turquoise / DT Swiss XM 1700 + SRAM XX1 Eagle / X-Large B22140TXLPTUFAT036500
Turquoise / DT Swiss XM 1700 + SRAM XX1 Eagle AXS / X-Small B22140TXSPTUFAT0365E0
Turquoise / DT Swiss XM 1700 + SRAM XX1 Eagle AXS / Small B22140TSMPTUFAT0365E0
Turquoise / DT Swiss XM 1700 + SRAM XX1 Eagle AXS / Medium B22140TMDPTUFAT0365E0
Turquoise / DT Swiss XM 1700 + SRAM XX1 Eagle AXS / Large B22140TLGPTUFAT0365E0
Turquoise / DT Swiss XM 1700 + SRAM XX1 Eagle AXS / X-Large B22140TXLPTUFAT0365E0
